Rodzaj łożyska: Dwa łożyska kulkowe
Materiał: Impeller &Frame: Plastik (UL94V-0)
Przewody ołowiowe: UL1007community 355;AWG26
Red Wire dodatni (+)
Czarny przewód ujemny一)
Waga: 13.0g

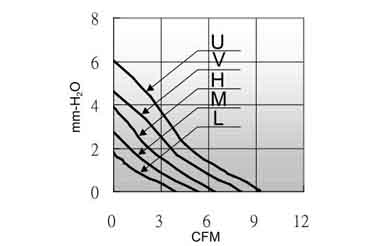

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA07006_05L | B/S/F | 5 | 3.5~5.5 | 0.1 | 3000 | / | / | 25 |
| WSA07006_12L | B/S/F | 12 | 7.0~13.2 | 0.06 | 3000 | / | / | 25 |
| WSA07006_05M | B/S/F | 5 | 3.5~5.5 | 0.18 | 4000 | / | / | 27 |
| WSA07006_12M | B/S/F | 12 | 7.0~13.2 | 0.1 | 4000 | / | / | 27 |
| WSA07006_05H | B/S/F | 5 | 3.5~5.5 | 0.32 | 5000 | / | / | 30.5 |
| WSA07006_12H | B/S/F | 12 | 7.0~13.2 | 0.2 | 5000 | / | / | 30.5 |
| WSA07006_05U | B/S/F | 5 | 3.5~5.5 | 0.5 | 6000 | / | / | 34 |
