Rodzaj łożyska: Dwa łożyska kulkowe
Materiał: Impeller &Frame: Plastik (UL94V-0)
Przewody ołowiowe: UL1007community 355;AWG26
Red Wire dodatni (+)
Czarny przewód ujemny一)
Waga: 10.0g

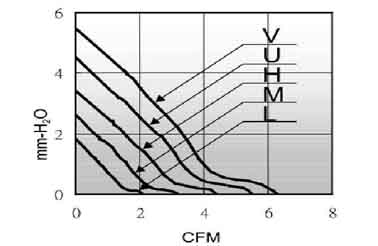

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA03510_05L | B/S | 5 | 4.5~5.5 | 0.09 | 5000 | 2.1 | 1.8 | 18 |
| WSA03510_05M | B/S | 5 | 4.5~5.5 | 0.11 | 6000 | 2.72 | 2.6 | 20 |
| WSA03510_05H | B/S | 5 | 4.5~5.5 | 0.13 | 7000 | 4.96 | 3.5 | 23 |
| WSA03510_12H | B/S | 12 | 7.0~13.2 | 0.11 | 7000 | 4.96 | 3.5 | 23 |
| WSA03510_05U | B/S | 5 | 4.5~5.5 | 0.13 | 9000 | 6.3 | 5.5 | 28 |
| WSA03510_12U | B/S | 12 | 7.0~13.2 | 0.13 | 9000 | 6.3 | 5.5 | 28 |
