Rodzaj łożyska: Dwa łożyska kulkowe
Materiał: Impeller &Frame: Plastik (UL94V-0)
Przewody ołowiowe: UL1007community 355;AWG26
Red Wire dodatni (+)
Czarny przewód ujemny一)
Waga: 155.0g

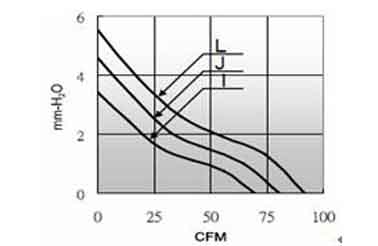

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA012025_12I | B/S | 12 | 6.0~13.2 | 0.19 | 1900 | 69.6 | 3.4 | 29 |
| WSA012025_24J | B/S | 24 | 14.0~26.4 | 0.11 | 1900 | 69.6 | 3.4 | 29 |
| WSA012025_12J | B/S | 12 | 6.0~13.2 | 0.21 | 2200 | 80.6 | 4.6 | 31 |
| WSA012025_24L | B/S | 24 | 14.0~26.4 | 0.12 | 2200 | 80.6 | 4.6 | 31 |
| WSA012025_12L | B/S | 12 | 7.0~13.2 | 0.25 | 2500 | 90 | 5.3 | 36 |
| WSA012025_12M | B/S | 12 | 7.0~13.2 | 0.31 | 2800 | 99.4 | 6 | 38 |
| WSA012025_12H | B/S | 12 | 7.0~13.2 | 0.45 | 3100 | 119.4 | 7.4 | 40 |
